Products / Foot + Ankle / Interference Screw System

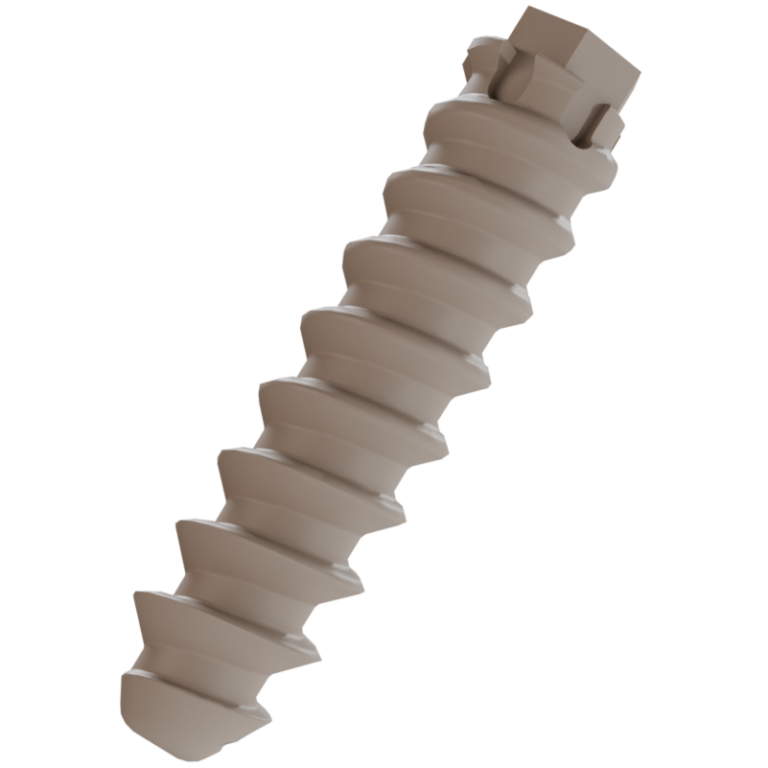

A Fusion Grade PEEK interference screw system with multi-drive insertion technology for soft tissue reattachment.
The multi-drive Interference Screw System is made of Fusion Grade PEEK, a compound of PEEK and hydroxyapatite, to promote osteoconduction.
The multi-drive technology combines inner hexalobe, outer hex, and outer flywheel insertion features. The source describes these features as providing increased torque resistance and decreasing the risk of stripping.
The system is intended for soft tissue reattachment, including fixation of ligament and tendon graft tissue and tendon transfers. Foot and ankle applications listed in the source are lateral stabilization, medial stabilization, Achilles tendon repair, hallux valgus reconstruction, midfoot reconstruction, metatarsal ligament repair, flexor hallucis longus transfer for Achilles tendon reconstruction, and flexor digitorum longus transfer for posterior tibial tendon reconstruction.
A compound of PEEK and hydroxyapatite described as promoting osteoconduction.
Inner hexalobe, outer hex, and outer flywheel insertion features.
Diameters of 4.0mm, 5.0mm, and 6.0mm with lengths from 10mm to 25mm.
| Part number | Description |
|---|---|
| Implants | |
| INTF-40-10P | 4.0mm Diameter x 10mm long, PEEK |
| INTF-40-15P | 4.0mm Diameter x 15mm long, PEEK |
| INTF-50-15P | 5.0mm Diameter x 15mm long, PEEK |
| INTF-50-20P | 5.0mm Diameter x 20mm long, PEEK |
| INTF-60-20P | 6.0mm Diameter x 20mm long, PEEK |
| INTF-60-25P | 6.0mm Diameter x 25mm long, PEEK |
| Part number | Description |
|---|---|
| Tray | |
| INTF-1001C-101 | Implant Caddy |
| INTF-1001C-102 | Implant Caddy Lid |
| INTF-1001C-103 | Instrument Caddy Part 1 |
| INTF-1001C-104 | Instrument Caddy Lid Part 1 |
| INTF-1001C-105 | Instrument Caddy Part 2 |
| INTF-1001C-106 | Instrument Caddy Lid Part 2 |
| Instruments | |
| INTF-1000T-DRL40 | 4.0 Drill |
| INTF-1000T-DRL50 | 5.0 Drill |
| INTF-1000T-DRL60 | 6.0 Drill |
| INTF-1001T-INST40 | Telescopic inserter 4.0 |
| INTF-1001T-INST56 | Telescopic inserter 5.0/6.0 |
| INTF-1000T-MINS40 | Multidrive inserter 4.0 |
| INTF-1000T-MINS56 | Multidrive inserter 5.0/6.0 |
| HAN-1000T-AOSJ | Handle |
| INTF-1000T-PASS | Suture Passer |
| INTF-1000T-SIZE | Tendon Sizer |
| CSRW-1000T-260 | Drill Guide Handle |
| CSRW-1000T-284 | 4.0mm Tissue Protectors |
| CSRW-1000T-286 | 5.0mm Tissue Protectors |
| CSRW-1000T-288 | 6.0mm Tissue Protectors |
| TB-1001T-DPG | Depth Gauge |
| CSRW-1000T-345 | K-Wire |
