Products / Foot + Ankle / Trigon / Lesser Metatarsal

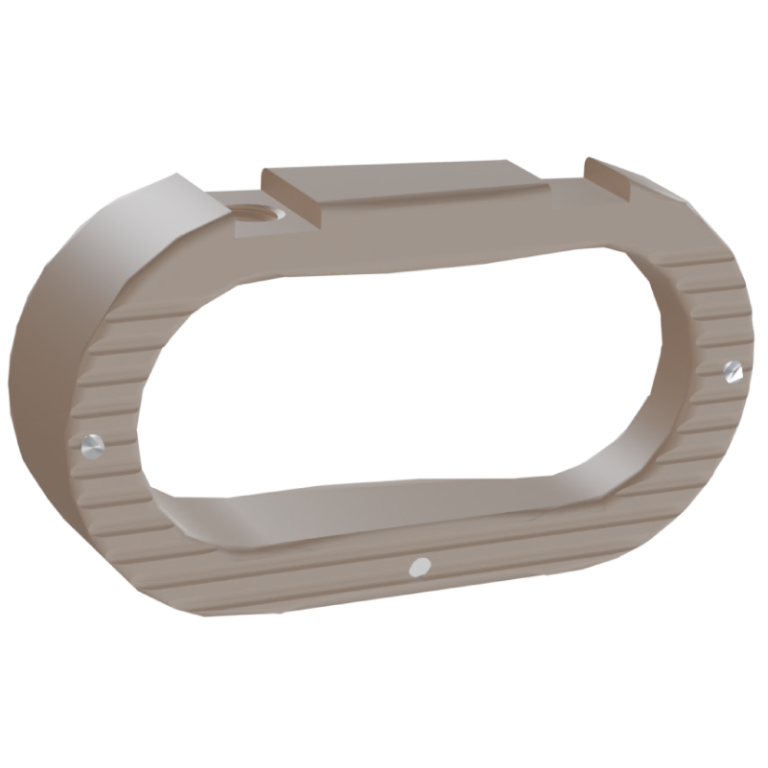

A Fusion Grade PEEK wedge system for lengthening arthrodesis of the second and/or third tarsometatarsal joints.
The Trigon Lesser Metatarsal Wedge System is made of Fusion Grade PEEK, with hydroxyapatite fully integrated throughout the PEEK.
The system is indicated for metatarsal-cuneiform lengthening arthrodesis of the second and/or third TMT joints. Single- and multi-joint options are provided in parallel or angular correction configurations.
The system can be combined with ancillary fixation using the staples provided. A targeting guide is provided for screw fixation if preferred.
Configurations are provided for single- and multi-joint applications.
6mm parallel wedges and 8mm transverse wedges at 6° or 9°.
The source describes ancillary staples and a targeting guide for screw fixation.
| Part number | Description |
|---|---|
| Wedges | |
| LMP-1414-0600 | 6mm Wedge Parallel PEEK Small Single Joint Lesser Metatarsal |
| LMP-1414-0806 | 8mm Wedge 6° Transverse PEEK Small Single Joint Lesser Metatarsal |
| LMP-1414-0809 | 8mm Wedge 9° Transverse PEEK Small Single Joint Lesser Metatarsal |
| LMP-1715-0806 | 8mm Wedge 6° Transverse PEEK Large Single Joint Lesser Metatarsal |
| LMP-1715-0809 | 8mm Wedge 9° Transverse PEEK Large Single Joint Lesser Metatarsal |
| LMP-1428-0600 | 6mm Wedge Parallel PEEK Small Multi Joint Lesser Metatarsal |
| LMP-1428-0806 | 8mm Wedge 6° Transverse PEEK Small Multi Joint Lesser Metatarsal |
| LMP-1428-0809 | 8mm Wedge 9° Transverse PEEK Small Multi Joint Lesser Metatarsal |
| LMP-1731-0806 | 8mm Wedge 6° Transverse PEEK Large Multi Joint Lesser Metatarsal |
| LMP-1731-0809 | 8mm Wedge 9° Transverse PEEK Large Multi Joint Lesser Metatarsal |
| Part number | Description |
|---|---|
| Staples | |
| STK-20-14-14 | 20mm Bridge Staple, 14mm x 14mm Legs |
| STK-20-18-18 | 20mm Bridge Staple, 18mm x 18mm Legs |
| STK-20-20-20 | 20mm Bridge Staple, 20mm x 20mm Legs |
| Trials | |
| LM-1414T-0600 | 6mm Trial Parallel PEEK Small Single Joint Lesser Metatarsal |
| LM-1414T-0806 | 8mm Trial 6° Transverse PEEK Small Single Joint Lesser Metatarsal |
| LM-1414T-0809 | 8mm Trial 9° Transverse PEEK Small Single Joint Lesser Metatarsal |
| LM-1715T-0806 | 8mm Trial 6° Transverse PEEK Large Single Joint Lesser Metatarsal |
| LM-1715T-0809 | 8mm Trial 9° Transverse PEEK Large Single Joint Lesser Metatarsal |
| LM-1428T-0600 | 6mm Trial Parallel PEEK Small Multi Joint Lesser Metatarsal |
| LM-1428T-0806 | 8mm Trial 6° Transverse PEEK Small Multi Joint Lesser Metatarsal |
| LM-1428T-0809 | 8mm Trial 9° Transverse PEEK Small Multi Joint Lesser Metatarsal |
| LM-1731T-0806 | 8mm Trial 6° Transverse PEEK Large Multi Joint Lesser Metatarsal |
| LM-1731T-0809 | 8mm Trial 9° Transverse PEEK Large Multi Joint Lesser Metatarsal |
| Instruments | |
| HAN-1000T-AOSM | Handle |
| WD-1000T-LMCG06 | Lesser Metatarsal 6mm Cut Guide |
| WD-1000T-LMCG08 | Lesser Metatarsal 8mm Cut Guide |
| WD-1000T-LMSDG | Lesser Metatarsal Wedge Staple Drill Guide |
| WD-1000T-MCGH | Lesser Metatarsal/Midfoot Cut Guide Handle |
| WD-1000T-TRI | Trigon Trial Inserter |
| STK-1000T-011 | 2.5mm Drill |
| STK-1000T-DIS1 | Staple Distractor |
| STK-1000T-TMP | Tamp |
